The Trackmaster series of engines are based on the 37042K Tecumseh cylinder that was recently approved by NHRA for junior drag racing. With a unique balance of performance, reliability and cost, each version is a terrific value. These power plants are easy to convert to and inexpensive to stay with. The mounting pattern and clutch cover attachment layout is the same as Briggs, making installation easy. The high reliability of these motors is achieved by using larger, stronger components. Cam failure is virtually unheard of. The rod is beefy and the cap is retained by large 5/16" screws: no need to change them between rebuilds. The crank is "Super Sized" with a 1" output shaft. All of the components we have developed for the Trackmaster engine series have been proven in edurance kart racing for over five years.
TRACKMASTER
1
(Click
here for Specifications)

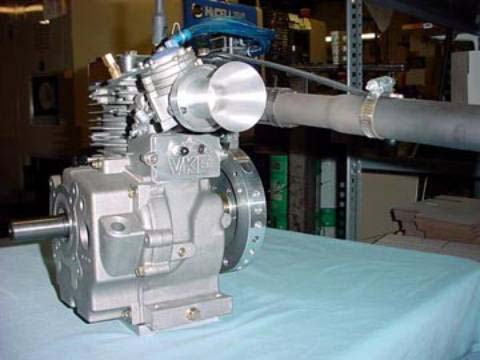

The new "gold standard" for mid-nine second performance. Install it and get consistent performance all season with no scheduled maintanence. Each motor is complete as pictured with carb, pipe, ignition kill wire, air filter and side oil drain. All are dyno run (dyno chart is included) and are ready to race. Also a great choice for the 12.90 class with a restrictor plate.
$1,895.00 plus shipping
Click on image for larger photo
Click on image for larger photo
TRACKMASTER
2
(Click
here for Specifications)

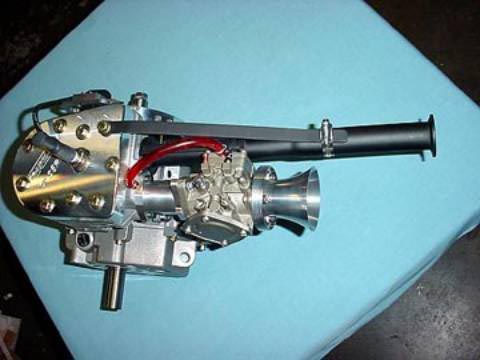

This is our big bore (3.438") model and is capable of low 8 second performance all year without a scheduled overhaul! The TM2 comes complete, as pictured. Each is dyno tested (chart supplied) and is ready to run.
$2,995.00 plus shipping
TORQUE CONVERTORS
Because of the large one inch diameter crank, clutches made for Briggs will not work. We offer a complete Comet converter kit (clutch, driven unit and belt) for $360.00. The clutches come already "ballpark" tuned for either the TM1 or TM2 model. Extra shoes are included if further adjustment is needed. Also, Gaged Engineering is developing a one inch hub for the Polar clutch. Contact them for further information at www.gagedengineering.com.
prices and specifications subject to change without notice.
